Food Grade Silicone Rubber – 1 Gallon Kit

$271.00

Same Day Shipping: Orders Placed Before 2pm PT M-F

Canadian Customers click here for shipping details.

This food grade silicone mold making rubber is a 2 part, RTV platinum addition cure kit.
Our Food Grade Silicone has good shelf life stability and mechanical properties.
You can make chocolate, candy, sugar, ice and other food molds with it.
AeroMarine Products’ Food Grade Silicone Rubber’s mix ratio is 10:1 by weight.

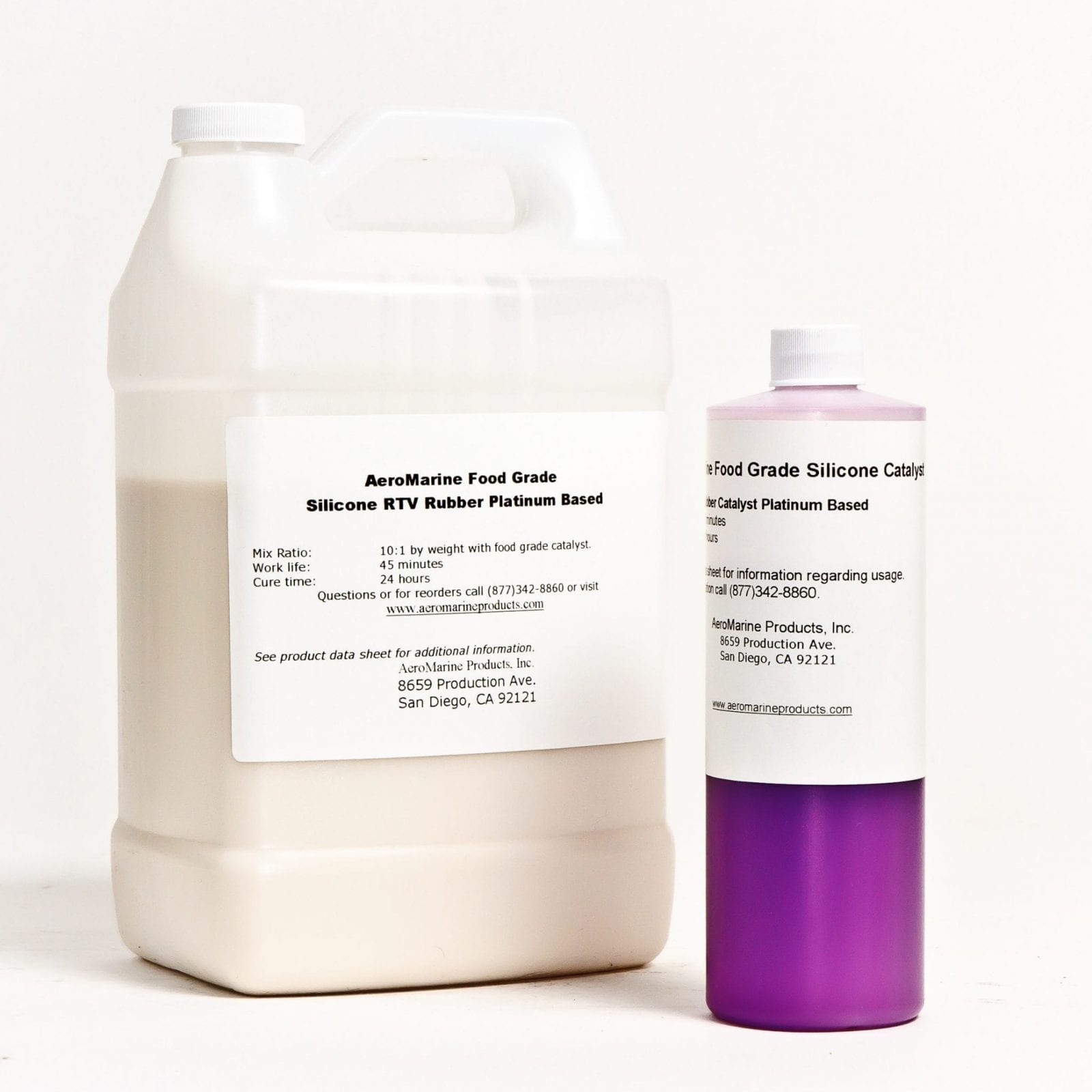

The 1 gallon kit equates to 8.8# and consists of beige silicone rubber and purple catalyst.
24 hour cure Time & 45 minute pot life
Our Food Grade Silicone is NOT suitable for making food storage containers or for use in the oven!

DESCRIPTION
HOW-TO
SHIPPING & RETURNS
PURCHASE NOW
TDS

PRODUCT DESCRIPTION

Features:

Has been tested to meet Title 21 (Food and Drug) Code of Federal Regulations Section 177.2600, Rubber articles intended for repeated use
High tear strength
Low viscosity
Picks up fine detail
Excellent dimensional stability

DO NOT USE ON HUMAN OR ANIMAL SKIN!

Physical Properties:

Color: Beige with purple catalyst
Mix Ratio: 10:1 by weight
Pot Life: 45 Minutes
Demold Time: 24 Hours
Mixed Viscosity at Room Temp, cps: 25,000
Durometer: 40 A
Tensile Strength: 750 psi
Elongation: 350%
Tear Strength: 125 Pounds Per Inch
Specific Gravity: 1.25

Cure Characteristics:

The curing process begins as soon as the catalyst is mixed with the base.
Under normal temperature (77F/25C) and humidity (50% RH) conditions, the material will cure as described in the data above.
Any large change in temperature (+/-5C) or humidity (>60-70%) may alter the cure profile of the material.
You can accelerate the cure with mild heat; 150F at 1 hour per inch of thickness.

HOW-TO:

Items Needed:

You will need an original part, clean mixing containers, mixing utensils, and a mold box into which to place your piece while making your mold.
A mold box can be made out of almost anything, including a reusable food container, cardboard, wood and Legos.
You may also need a digital scale, a glue gun and/or clay.
Depending on the size of the piece, 1/2″ of silicone mold-making rubber is the minimum thickness necessary for the walls of your mold.
- Making it too thick will reduce the flexibility of the mold, while too thin will reduce the resistance to tearing.
Silicone RTV mold making rubber may soak into a porous surfaces like wood or plaster. To prevent sticking, first seal the part with a sealant appropriate to the material.

Measuring & Mixing:

Shake the catalyst very vigorously for 60 seconds before weighing it.
Weigh parts A and B accurately (10:1 by weight).
Once you have correctly measured both parts, mix parts A and B together with a plastic or wooden stirring utensil.
Take care to scrape the sides and bottom of the mixing container.
Keep your stirring utensil on the bottom of the container to reduce the amount of air being mixed into the silicone.
Mix for several minutes, scraping the sides and bottom frequently, until the silicone is one uniform color with no streaks.

Pouring Silicone:

When pouring your silicone, do NOT pour it directly onto the part. Instead, pour the silicone into the shallowest part of the mold and let it find its own level. This method prevents air bubbles forming on the surface of your part.
Storing Your Cured Silicone Mold (Storage longer than 1 week)
- First, apply mold release to your cured mold.
- Second, pour your casting material into the prepared mold. Or, you can insert a previously cast cured piece into the prepared mold.
- Third, put your mold (if a smaller mold) with the piece in it into a doubled “Ziploc” type bag with all the air pressed out of the bags.
- Fourth, seal the bags tightly closed using either a plastic bag sealer or over-tape them with duct tape.
For larger molds, use very heavy duty doubled garbage bags, remove all the air and seal tightly either with a plastic bag sealer or over-tape with duct tape.
- Finally, put your sealed, bagged mold into a plastic storage container with a lid, close the lid and store on a flat shelf/surface (NOT the floor or window) at continuous 70F out of direct sunlight.

Cleaning Silicone Molds for Use:

Wash your cured silicone mold with warm/hot water and mild liquid dish soap.
Pat dry thoroughly and then let the mold air-dry fully.
Never use any type of abrasive soap, cleaner or pad to clean your silicone mold!

Tips:

Not suitable for making food storage containers.
Not use for making baking or microwave pans.
Shake catalyst vigorously for 60 seconds before using.
Wash the cured mold thoroughly with warm water and liquid dish soap before use.

Technical Data Sheets (TDS)

Download

SHIPPING AND RETURNS

Shipping
Via UPS Ground

Returns
We only accept returns of unopened and unused product. Customer must return product within 30 days of receipt. Customer must contact us before returning a product. Customer pays for return shipping. All returns are charged a 15% restocking fee.

**shipping estimates may vary based on product selection and destination and a tracking code will be sent after checkout.

Canadian Customers**

If you are ordering from Canada, additional shipping rates and fees may apply. Please contact one of our representatives for more information. Contact us today!
